Runtools

Runtools provide a number of additional functions for working with code cells in the IPython notebook:

Code Cell Execution

  • Execute a single cell
  • Execute from top cell to currently selected cell
  • Execute from currently selected cell to bottom cell
  • Execute all cells
  • Execute all cells, ignore exceptions (requires ipython/pull/6521)
  • Execute marked code cells (cells with green gutter area are marked)
  • Stop execution (duplicate to standard toolbar button)

Code Cell Marking

  • Mark one or more code cell

Code Cell Display

  • Hide or show input (i.e. the source code) of marked code cells
  • Hide or show output of marked code cells

Description

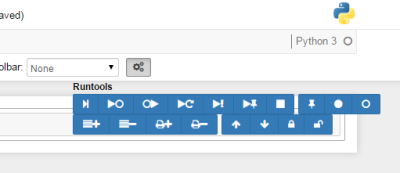

The runtools extension adds a button to turn on/off a floating toolbar:

This adds Code execution buttons:

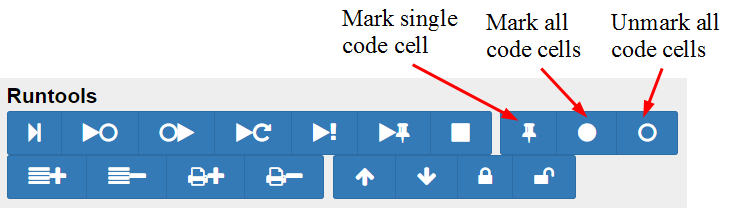

Codecells can be marked by clicking on the gutter of a codecell or by clicking on the markers toolbar:

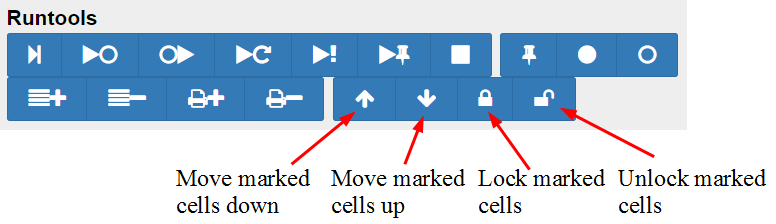

Marked codecells can be locked to read-only mode and moved upd and down:

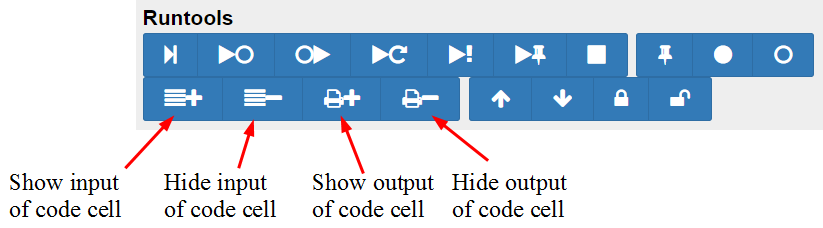

The input and output areas of marked codecells can be hidden:

A IPython notebook with marked cells looks like this:

Internals

New metadata elements added to each cell:

  • cell.metadata.hide_input - hide input field of the cell
  • cell.metadata.hide_output - hide output field of the cell
  • cell.metadata.run_control.marked - mark a codecell

To export a notebook with hidden input/output fields, the custom template hide_input_output.tpl is required. It should have been installed in the templates folder. You can find the templates folder of jupyter_contrib_nbextensions from python using

from jupyter_contrib_nbextensions.nbconvert_support import templates_directory
print(templates_directory())

The template needs to be in a path where nbconvert can find it. This can be your local path or specified in jupyter_nbconvert_config or jupyter_notebook_config as c.Exporter.template_path, see Jupyter docs.

For HTML export a template is provided as nbextensions.tpl in the jupyter_contrib_nbextensions templates directory. Alternatively you can create your own template:

{%- extends 'full.tpl' -%}

{% block input_group -%}
{%- if cell.metadata.hide_input -%}
{%- else -%}
{{ super() }}
{%- endif -%}
{% endblock input_group %}

{% block output_group -%}
{%- if cell.metadata.hide_output -%}
{%- else -%}
{{ super() }}
{%- endif -%}
{% endblock output_group %}

For LaTeX export a different template is required, which is included as nbextensions.tplx in the jupyter_contrib_nbextensions templates directory. Alternatively you can create your own template:

((- extends 'report.tplx' -))

((* block input_group -))
((- if cell.metadata.hide_input -))
((- else -))
((( super() )))
((- endif -))
(( endblock input_group *))

((* block output_group -))
((- if cell.metadata.hide_output -))
((- else -))
((( super() )))
((- endif -))
(( endblock output_group *))
